Couvercle et taque voirie en fonte COPRO D400

Lids and covers cast iron paved roadway COPRO D400

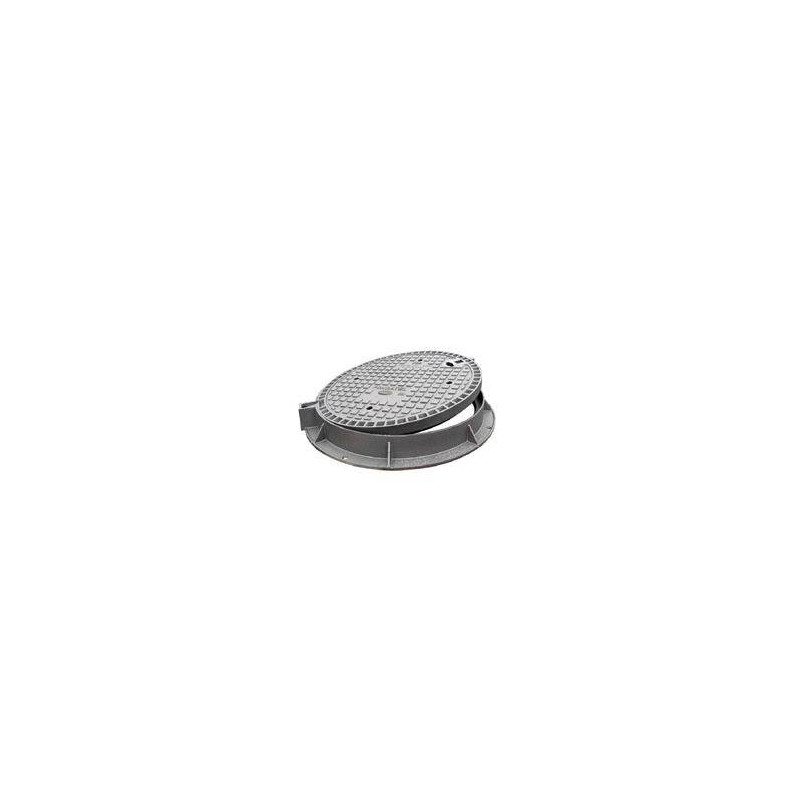

Road cover cast iron round opening COPRO. Load resistance D400 EN 124

Load of 400 kN during testing.

Reference:DES VIA4L

EAN13: 9145385970348

Road cover cast iron round opening COPRO. Load resistance D400 EN 124.

Hinged cast iron lid with elastomeric gasket on the frame for soundproofing.

Lid opening at 120 °

The VIA 8L model is ideal for paving stones and klinkers

Load of 400 kN during testing.

Table of exterior and interior dimensions

Ref. Article \|	Frame dimensions \|	Free opening \|	The height \|	loaded down
VIA4LDWA	Ø 895 mm	Ø 700 mm	100 mm	D400
VIA4LRWA	Ø 895 mm	Ø 700 mm	100 mm	D400
VIA8LDWa	900x900 mm	Ø 700 mm	120 mm	D400
VIA8LRWa	900x900 mm	Ø 700 mm	120 mm	D400

Definition of load resistance classes

	Places only accessible to pedestrians and cyclists. Breaking load: 15 kN/m² or 1.5 tonnes/m²
	Sidewalks, pedestrian areas, private parking areas and parking lots for cars. Max V: 20 km/h Breaking load: 125 kN/m² or 12.5 tonnes/m²
	Pedestrian streets and car parks. Places for cars and vans with moderate speed. Breaking load: 250 kN/m² or 25 tonnes/m²
	Traffic lanes and parking areas for all types of road vehicles. Max V: 50 km/h Breaking load: 400 kN/m² or 40 tonnes/m²
	Areas subject to high axle loads such as ports and industrial areas. V max > 50 km/h Breaking load: 600 kN/m² or 60 tonnes/m²
	Areas subject to particularly high axle loads such as runways for airplanes or industrial areas with intensive passage. Breaking load: 900 kN/m² or 90 tonnes/m²

Reference:DES VIA4L

Stock :5 Items

Specific References

EAN13: 9145385970348

Download

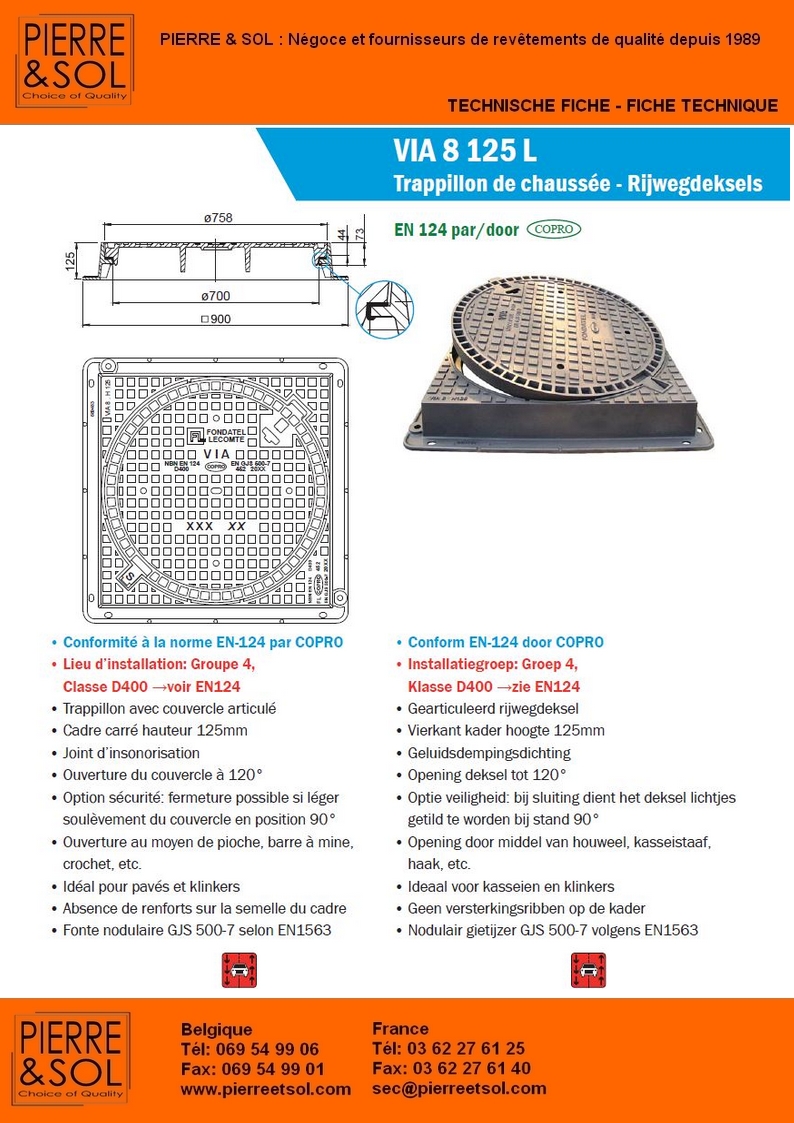

Fiche Technique Couvercle VIA8L

Download (497.96KB)

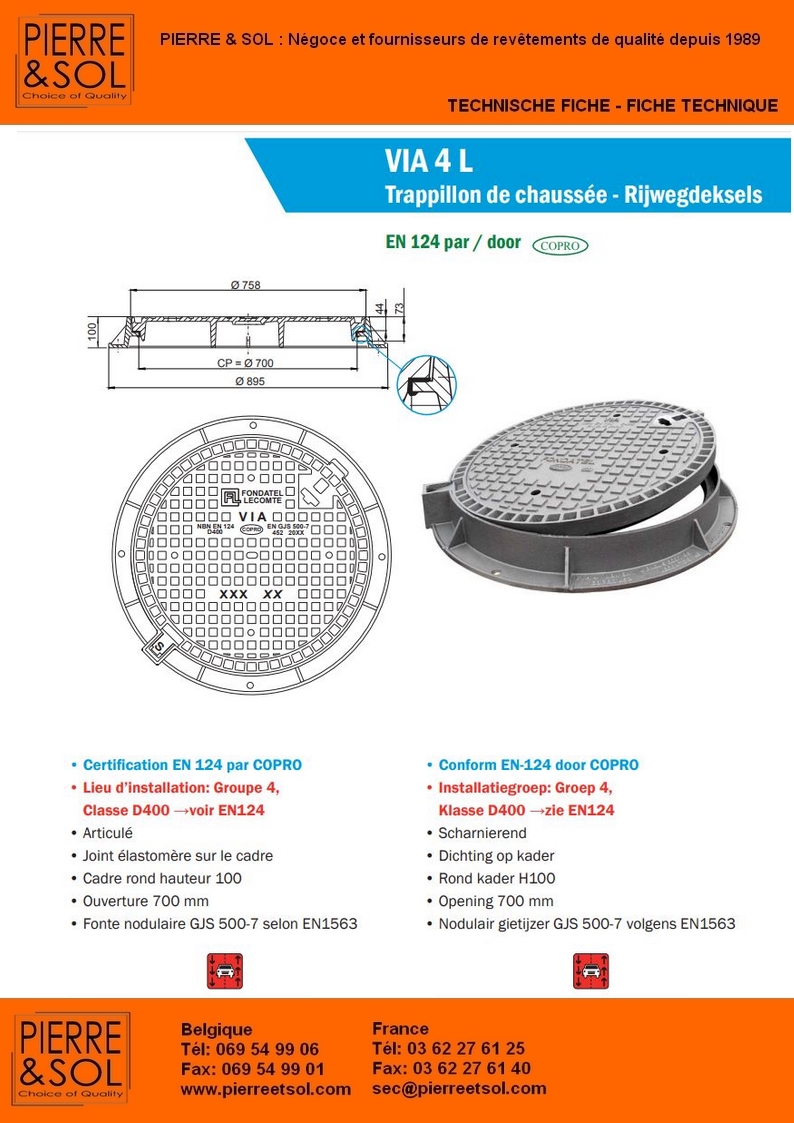

Fiche Technique Couvercle VIA4L

Download (396.82KB)
